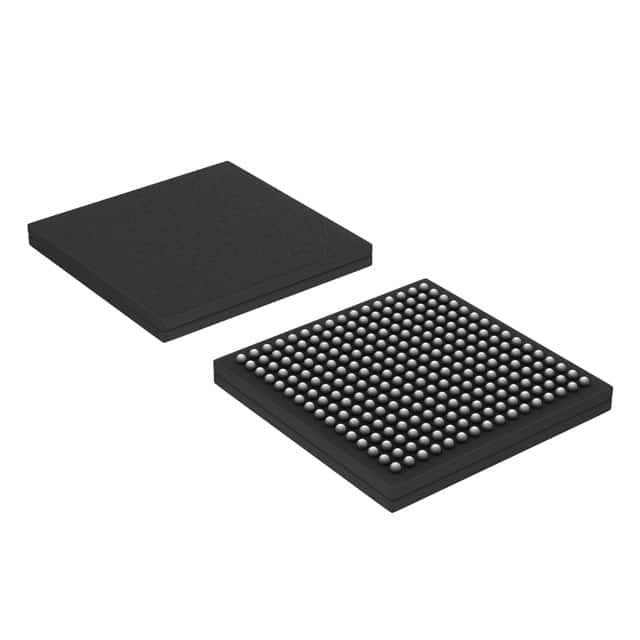

MCF5282CVM80
IC MCU 32B 512KB FLASH 256MAPBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MCF528x series microcontroller, part number MCF5282CVM80, is a 32-bit Coldfire V2 single-core device operating at 80MHz. This high-performance component features 512KB of FLASH program memory and 64KB of RAM, with an 8x10-bit Analog-to-Digital converter. Connectivity options include CANbus, EBI/EMI, Ethernet, I2C, SPI, and UART/USART. Integrated peripherals include DMA, LVD, POR, PWM, and WDT. The MCF5282CVM80 is housed in a 256-MAPBGA (17x17) surface mount package, suitable for applications requiring robust processing power and extensive peripheral support. It operates within a voltage range of 2.7V to 3.6V and an ambient temperature range of -40°C to 85°C. This microcontroller is commonly found in industrial automation, automotive control, and advanced networking systems.
Additional Information
Series: MCF528xRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 256-LBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 64K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | Coldfire V2 |
| Data Converters | A/D 8x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 256-MAPBGA (17x17) |
| Number of I/O | 150 |
| Programmable | Not Verified |
